For a superior performance on roads and tracks, an optimized aero balance is essential. Depending on setup, tyres, suspension, driving style, characteristics of the road or track, etc., a higher or lower downforce on the rear axle is necessary. Unfortunately, the Lotus OEM brackets of the Cup 430 wing do not offer any options for adjustments, the wing (and its angle of attack) is fixed in one position - a precise setup of the downforce on the rear axle is not possible with the OEM brackets/stays.



The 8-step adjustable JUBU wing stays + brackets for the OEM Lotus Cup 430 wing (and compatible wings) resolve this problem and make a precise adjustment of the aero balance of the car possible. With the JUBU 8-step stays/brackets, the angle of attack of the wing can be precisely adjusted in steps of 1,33° (4 steps more aggressive than OEM, 1 step OEM, 3 steps less aggressive than OEM). With this solution you can increase or reduce the downforce on the rear axle based on your demands and optimise in this way the aero-balance and driving behaviour of your car.



Because of the special design with 8 dedicated steps (one hole for each step), the JUBU brackets prevent the wing from unwanted alternations during high-speed driving (in comparison to other, stepless adjustable solutions on the market). The JUBU design also ensures a precise reproduction of a downforce setup again and again.



During CFD-simulations we found out, that the Cup 430 wing works better when it is moved a little bit up and backwards on the car, this is why we have designed our stays this way. With the JUBU stays, the wing will move upwards and backwards to be more efficient.



Benefits

• Easy and precise optimization of the aero-balance of the car (more or less downforce on the rear axle, depending on the chosen angle of attack)
• No risk of unwanted alternation of the wing in high-speed driving by using dedicated holes for each setup (in comparison to solutions with long holes for stepless adjustments)
• Precisely reproductible setup by using 8 dedicated holes
• Optimized position of the wing (slightly higer, slightly moved backwards) for higher efficiency
• Inexpensive solution with a huge impact of the driving behaviour and balance options of the car
• Smart designed, precisely manufactured and finished in a very high-quality (OEM-level)
• Plug & play usage with the OEM Cup 430 wing (or compatible 3rd party wings) and different engine-lids (carbon, glass, etc. - please choose your lid via "options"),100% retrofittable

Details

• 8-step adjustable tilt of the Cup 430 wing (+/-1,33° per step) at the wing bracket. Depending on the chosen tilt, the wing will generate more or less downforce (4 steps more aggressie than OEM, 1 step OEM, 3 steps less aggressive than OEM) for a perfect balanced setup

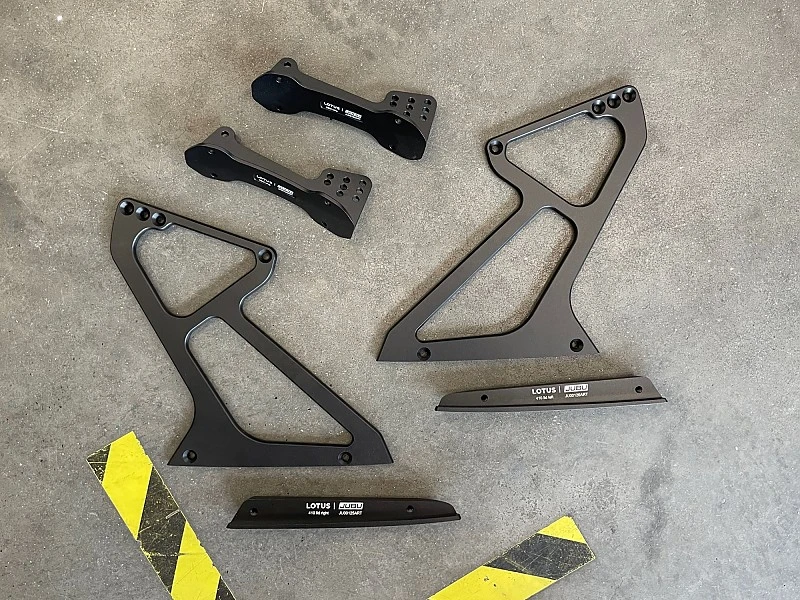

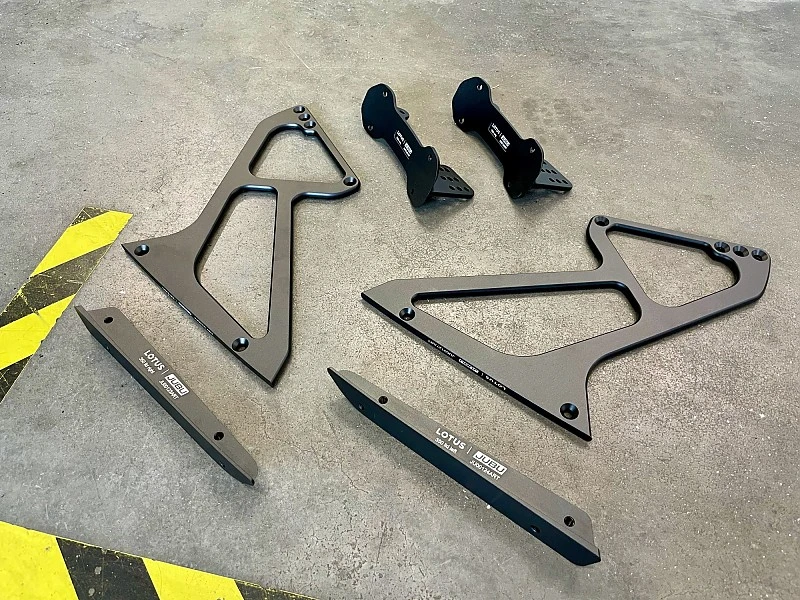

• 2 x 3 part system (2 x optimized mounting-bracket at the engine-lid side (L + R), 2 x high-strength wingstays (L + R), 2 x 8-step adjustable wing-mounts (L+R, brackets on the bottom side of the wing))
• Designed, engineered and manufactured by JUBU Performance - developed and optimized via CAD + CFD-simulation, heavily tested on roads and tracks
• Compatible with the JUBU pressure distribution system (available as option)

Fits for

• Exige Cup 430
• Exige Sport 410, Sport 420 FE with Carbon Engine Lid (Cup 430 wing or compatible 3rd party wing mandatory)
• Exige V6, Sport 350, Sport 380, Sport 390 with glass/GFK engine lid (Cup 430 wing or compatible 3rd party wing mandatory)

Scope of delivery

• 2 pcs. wing-mounts, CNC-milled from high-strength aluminium, anodized black (8-step adjustable, mounting on the bottom-side of the wing)
• 2 pcs. wingstays, CNC-milled from high-strength aluminium, anodized black (vertical stays)

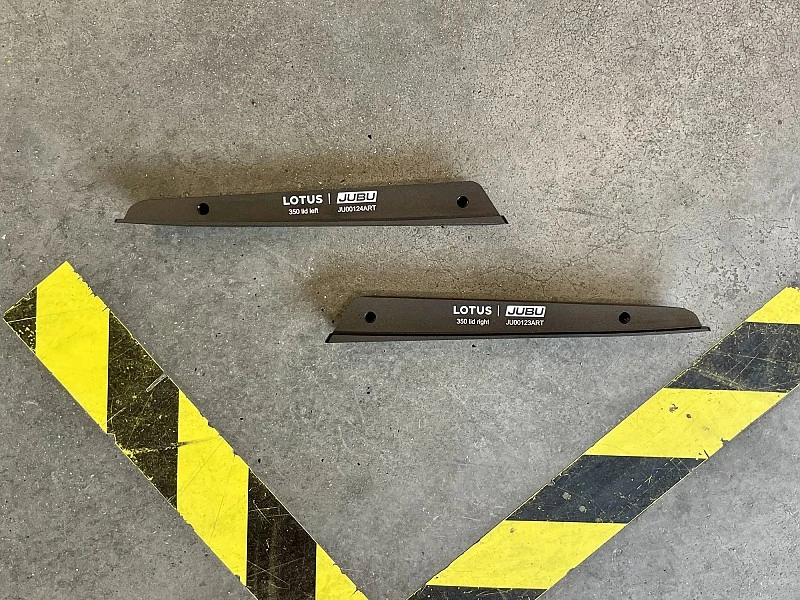

• 2 pcs. mounting brackets, CNC-milled from high-strength aluminium, anodized black (mounting on the engine-lid)
• Mounting material

Options (please choose)

• Model-choice (different enginge-lids)
• JUBU pressure distribution system
