JUBU Emira 500 Power upgrade
for Emira V6
The JUBU Emira 500 power upgrade transforms the Emira standard engine into a fully built race engine. We change or upgrade many parts (pistons, rods, bearings, etc.) and all crucial periphery (cooling system, etc.) against especially designed and very robust motorsport-proven components or adapt/reinforce the OEM-components significantely.
Despite this major upgrade and a power output of 500 hp, there are absolutely no durability/reliability issues, because all components we use are designed und tested for power outputs of 700+ hp (e.g.: JP ZERO with 750 hp or Radford P62 Pikes Peak with 700hp).
The kit comes in OEM-quality, all OEM-features of the car remain untouched and stay fully functional. The carbon Airbox is the only visible modification in the engine bay. All components match precisely and are well tuned, so even cold start and ideling sound and feel like in the original car.
The everyday suitability remains fully intact - but within the blink of an eye you can switch the car to a true monster on tracks.
Benefits / advantages
- Permanently durable performance increase to 500 hp
- OEM quality cold start and idling
- All OEM functions stay fully intact (even OEM Sport and race modes)
- Fully suitable for everyday use and ready to race at the push of the accelerator
- Only moderate boost pressure increase to approx. 0.59 bar - very gentle to the engine
- Low intake air temperatures - app. 30 degrees above ambient temperature
- Technology proven many times over
- No more engine damages by "breaking" the piston webs between the 1st and 2nd piston ring (possible with original pistons at power outputs higher than 430 hp)
Details
- Fully reinforced engine with new forged pistons, steel connecting rods, valve springs, oil pump, etc.)
- Use of the OEM Lotus supercharger from Edelbrock including the OEM Lotus charge air cooling (supplemented)
- The price gap to some competitor products is a result of the high-quality components we use, the more complex software development and the manufacture of the products in Austria.
- By reinforcing or replacing internal engine components, the engine or substructure is durable for outputs of up to +700 hp.
- Developed and handcrafted in Austria
- Mature, tried-and-tested technology (more than 50 of our 500 hp kits have already been installed in various Lotus models with V6 engines and are in operation without any problems)
- CNC machining of the cylinder heads means that only a minimal increase in boost pressure is required
Fits for
- Emira V6
Scope of delivery/Service
- JUBU Emira Plug&Play ECU Kit
- JUBU upgrade valve springs
- ARP head studs
- JUBU forged pistons
- JUBU steel rods
- JUBU upgrade rod bearings (coated)
- Update of the original belt drive incl. JUBU upgrade tension and idler pulleys
- Modification of main bearing and thrust bearing
- Adapted pulley with optimized ratio for a minimal increase of boost pressure of the supercharger
- Washable sports air filter
- 2 pcs. JUBU 3-1 stainless steel headers - made in Austria
- HD HJS stainless steel sports catalytic converter - made in Austria
- All necessary gaskets and sealings incl. head gaskets
- Full installation, test on dyno and precise adjustment of the mapping for the specific model/car (all labor for the upgrade included in the price)

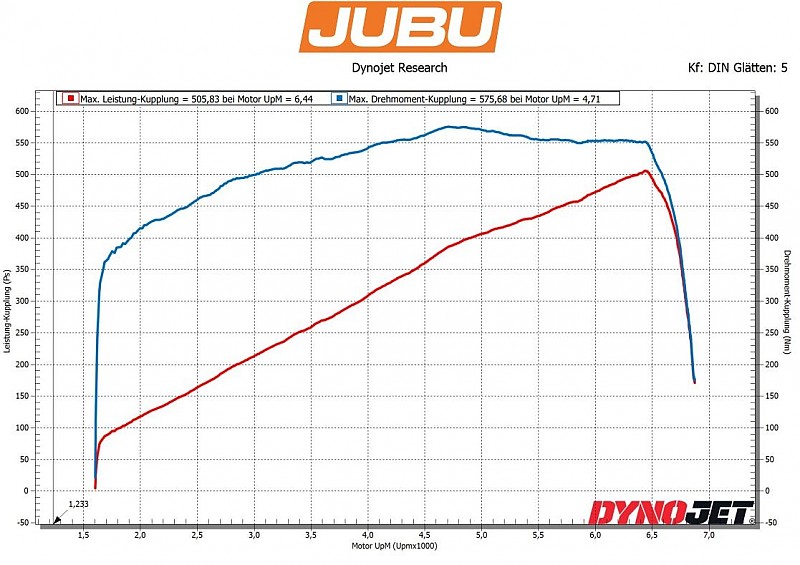

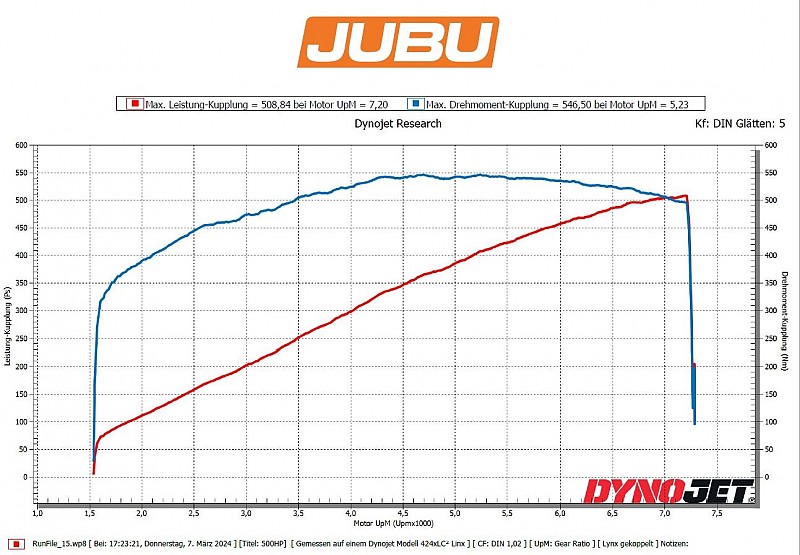

- Dyno run incl. performance graph and video
- Decal-Set "Emira 500"
Options / accessories (please select via "additional options" if necessary)
- JUBU oil catch can with aluminium tank and return line
- JUBU engine cooling upgrades 2GR-FE and/or JUBU transmission oil cooling upgrade 2GR-FE for additionally improved engine or transmission cooling (strongly recommanded for hot climate or trackday use)
- JUBU 2-1 stainless steel Y-pipe for additionally optimised exhaust gas flow
- JUBU Premium heat protection insulation for the exhaust system for lower temperatures in the engine compartment
- VBand clamps: High-quality, permanently gas-tight clamps replace the exhaust flanges and their seals. A must-have for every motorsport enthusiast! Header to Y-pipe (2 pieces) and Y-pipe to sports cat (1 piece)
- Trackday option: JUBU dry sump system 2GR-FE for constantly stable oil supply even at very high longitudinal and lateral acceleration on the racetrack
- For more Trackday options please contact our sales team - they will give you advice!
Tech-Info: The standard valve springs, are already overstretched when rev. 300-500 rpm higher than redline. This would cause mechanical contact of valves and pistons which and lead to major damage. Therefore, we install the JUBU valve spring upgrade with every Emira 500 performance upgrade. This includes 24 reinforced valve springs and the installation in the already dismantled cylinder heads, including grinding in the valves and replacing the valve stem seals.
NOTE: The use of high-quality fuel (min. 98 octane) is mandatory.
NOTE: The installation takes place at JUBU Performance in Münzbach, Austria and will need 5-7 working days. Optional assembly is possible worldwide, executed by JUBU staff or certified partners.
If you have any questions about the product or to order, please do not hesitate to contact us by phone or email.
* The stated prices shall apply exclusively under the condition that errors and misprints are excepted.
