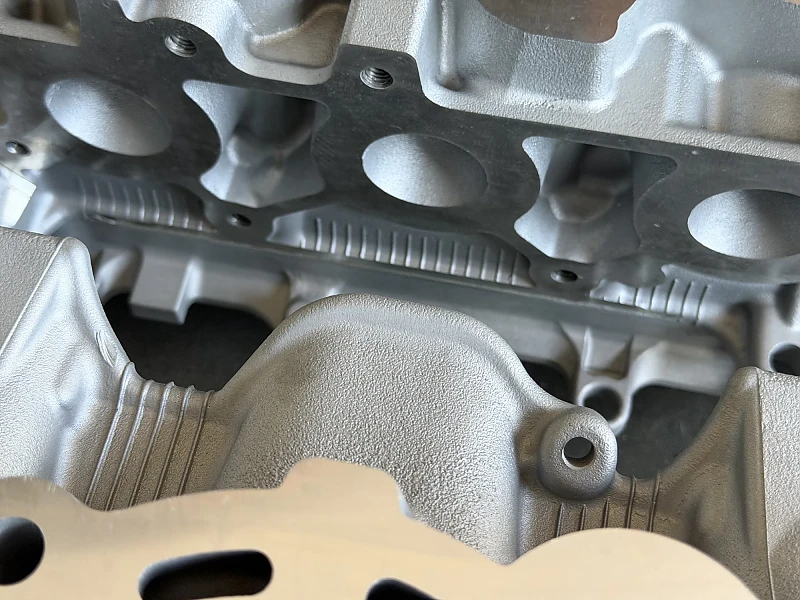

JUBU OEM cylinder heads 2GR-FE refurbed
We offer an inexpensive alternative to the almost unaffordable original Lotus/Toyota cylinder heads.
The cylinder heads are removed from functioning engines and completely reconditioned. (Water/glass bead blasting, all flat surfaces machined and the heads are pressure tested on the water side)
JUBU refurbished cylinder heads are significantly higher quality than new original cylinder heads thanks to their CNC multi-angle contour and CNC valve guides made from special materials.
Benefits/advantages
- Affordable alternative to new original Lotus/Toyota cylinder heads

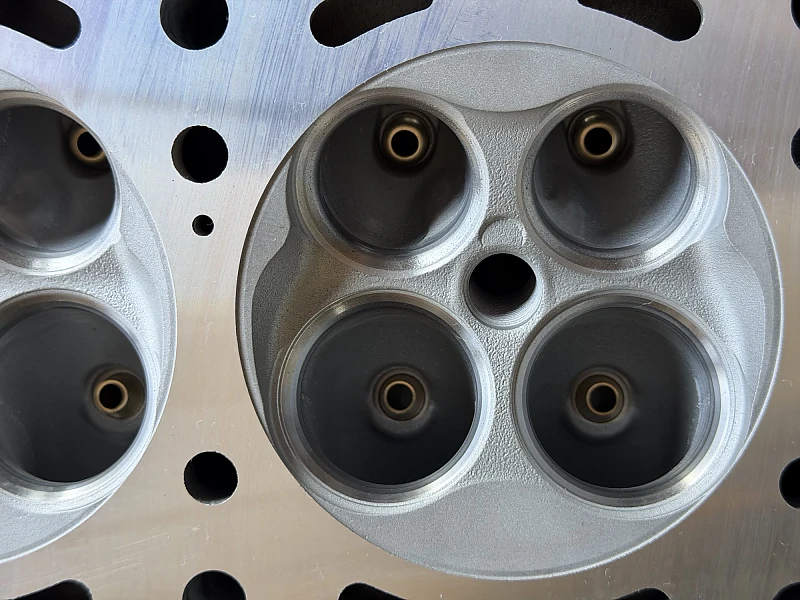

- Increased flow at the seat rings (intake and exhaust) thanks to CNC multiple seat contour and widening of the seat rings to maximum diameter. (without weakening the seat)
- CNC valve guide made of a high-quality copper/nickel/aluminium alloy (motorsport quality)
- Proven system – the cylinder heads are in use hundreds of times around the globe
Product details
- Great opportunity to rebuild your engine after engine failure or during an overhaul with high mileage
- Very affordable price for OEM Lotus/Toyota cylinder heads (refurbished by JUBU)
- Cylinder heads look almost new thanks to extensive reconditioning (refurbished by JUBU)
- Cylinder head bank 1 right A132E6101S
- Cylinder head bank 2 left A132E6110S
Suitable for
- All Exige S3 models (V6)
- All Evora models
- 3-Eleven models
- Emira V6
Scope of delivery
- 2 pcs JUBU refurbished cylinder heads V6 (bank 1 and bank 2)
- CNC machining of valve seats to standard valve diameter
- CNC cutting of all (24) inlet and outlet seat rings with special contour (multi-angle seat)
- Renewal of all (24 pcs) CNC valve guides made of a copper/nickel/aluminium alloy (motorsport quality)
- Minimal planing of cylinder heads and all sealing flanges (intake and exhaust)
- Cleaning of cylinder heads using ultrasound
- Blasting of cylinder head (using water/glass bead process) – the surface is very similar to the OEM finish.
Options/accessories (please select under ‘Additional options’ if applicable)
- JUBU upgrade valve set 2GR-FE
- OEM Toyota stem seals (12 pcs inlet and 12 pcs outlet) OEM Toyota
NOTE:
The parts are always cleaned for installation. However, please note that the components may become contaminated during shipping/packaging or when the package is opened by customs! Therefore, please clean and check the parts again immediately before installation!
If you have any questions about your order, please contact us – we will be happy to advise you!
