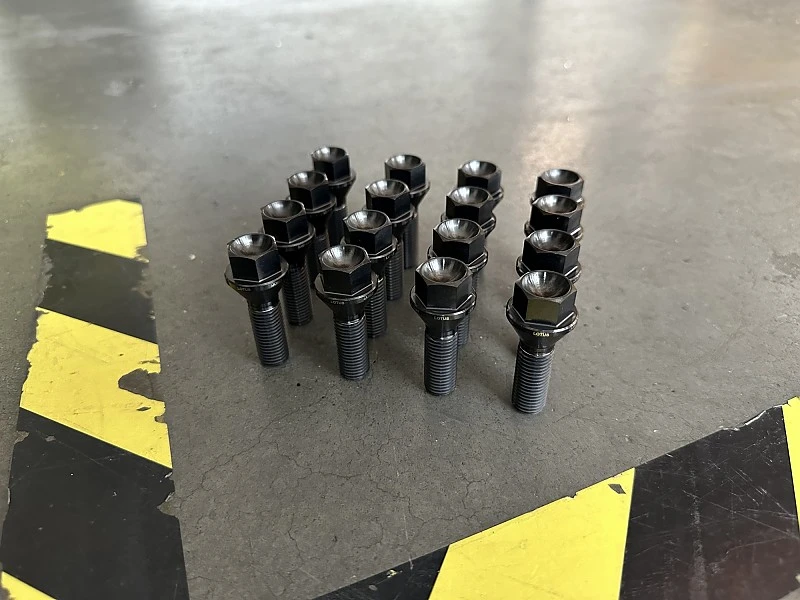

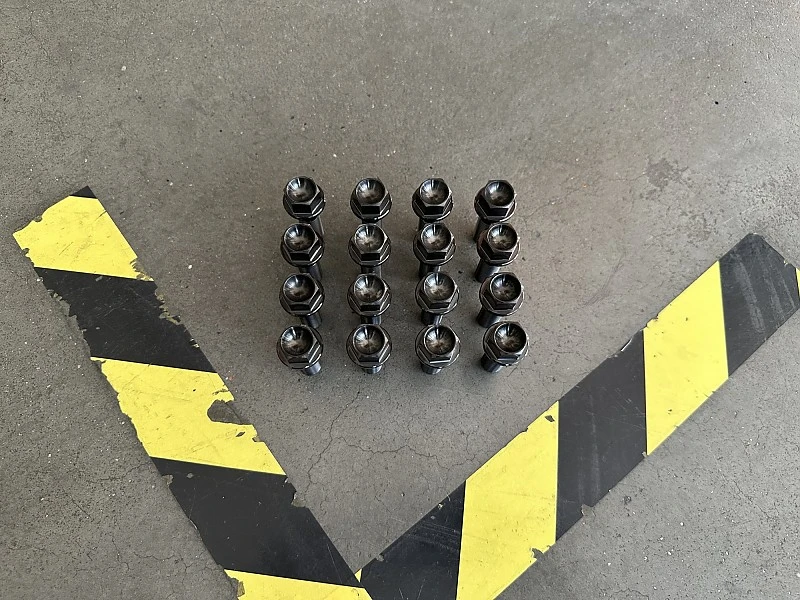

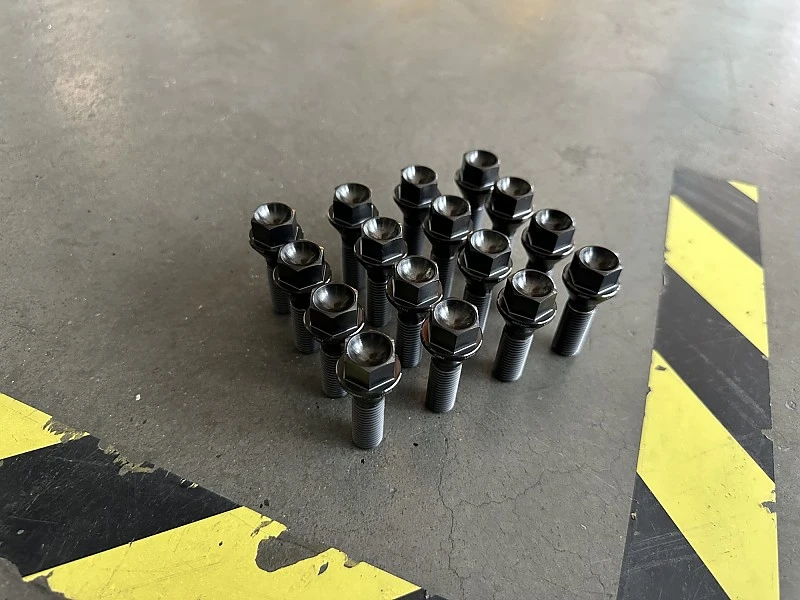

The JUBU wheel bolts are made of grade 5 titanium and are supplied with a special PCD coating. The titanium bolt has the same strength as the steel bolt, but with only approx. 40% of the original weight.

Replacing the wheel bolts results in significant synergy effects in terms of appearance and savings in unsprung mass. A total of 704g of unsprung mass is saved.

Benefits

• Same strength but 57% weight saving
• Original Lotus wheel bolt 77g per piece.
• JUBU titanium wheel bolt 33g per piece - with 16 pieces, this results in a saving of 704g in unsprung mass
• Use of a standard hexagon (16) eliminates the need for the susceptible Lotus multi-tooth tool
• No more problems when changing wheels due to a broken multi-tooth tool
• Sporty design that harmonises very well with Lotus rims
• Lightweight, very stable screw thanks to titanium grade 5
• Improved appearance (black) and no more rust or oxidation on the galvanised wheel bolts

Details

• Ultra-light and precise fit
• Special black PCD coating against friction and surface corrosion
• Plug & Play (ready to fit)
• Designed with the latest CAD technology, extensively tested using simulations and on the road and racetrack
• Developed and designed by JUBU Performance
• Thread lenght to cone (60°) 32mm
• Torque 110-120 NM

Fits for

• all Lotus models with 4-hole rims (16 wheel bolts) Elise S2/S3, Exige S2, 211

Scope of delivery

• 1 set of JUBU titanium wheel bolts black (16 pcs)

Note: When fitting, be sure to check the length of the bolts fitted. Use the same torque as the original. We recommend 110-120 NM tightening torque. New bolts must be retightened after 20 kilometres of driving. When using for the first time, apply some anti-size or dry lubricant (no grease or oil) to the first 3-4 threads (use sparingly)

Note: This is a motorsport part – not approved for road use!

If you have any questions about the product or ordering, please do not hesitate to contact us by phone or email.
