The original Lotus suspension joints on the rear axle are rather small. They cannot withstand the forces that occur during very sporty driving or track days (high grip level). They wear out quickly and can even be pushed out of the wheel upright at high load peaks and high temperatures (in older vehicles due to OEM bushes that have already been replaced several times during normal road use).

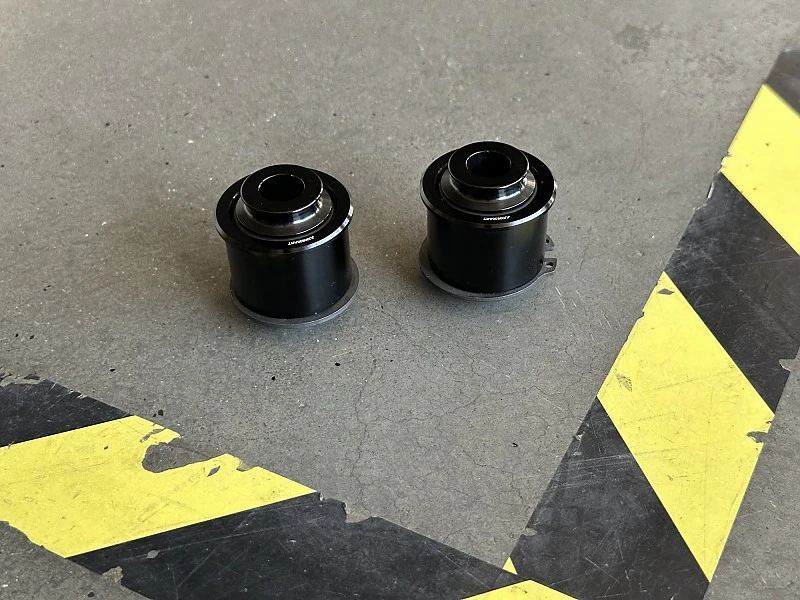

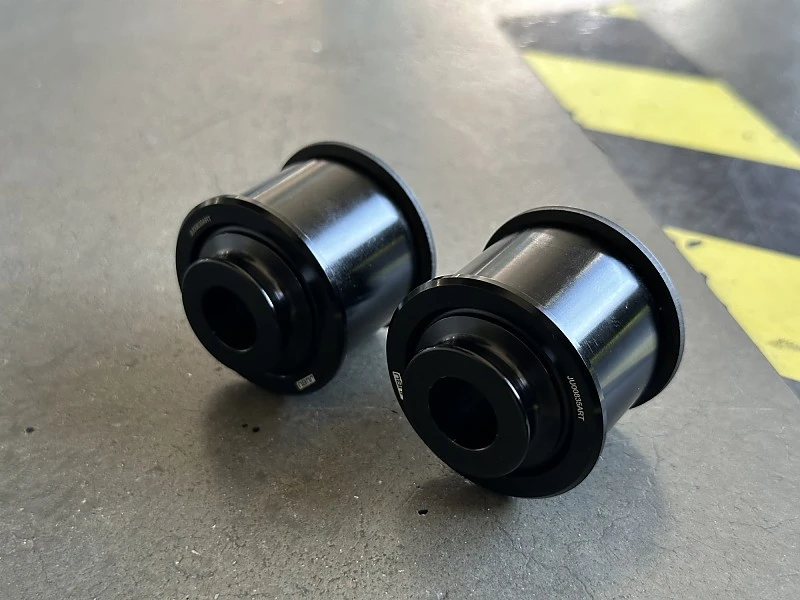

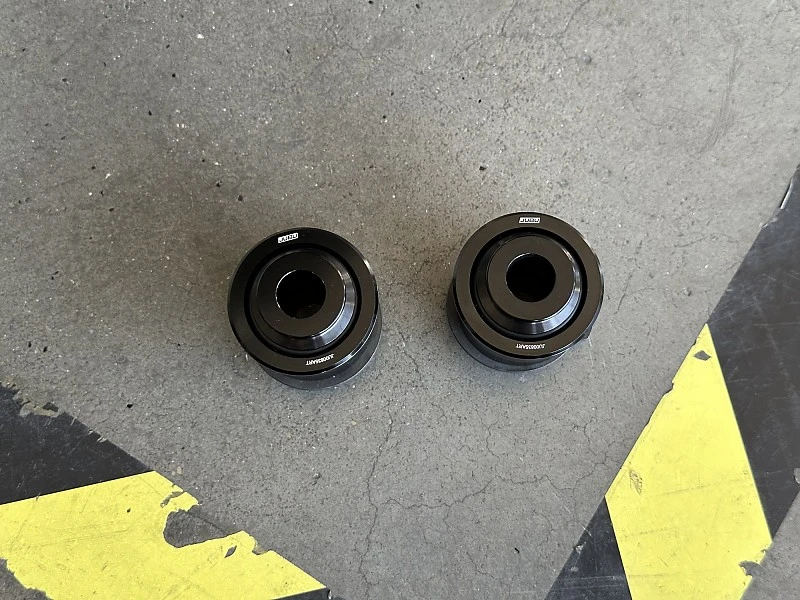

The JUBU upgrade uniball kit for the rear wheel upright permanently solves this problem on the Exige V6 and 3-Eleven. These are constructed from high-strength aluminium and an end stop (can no longer be pushed out) and are fitted on the inside with play-free Uniballs in motorsport quality (German manufacturer). This ensures safety on the one hand and a final and durable solution on the other.

The JUBU uniball kit can be used for the top and bottom of the wheel upright. Note the installation direction and force flow - see the JUBU Installation Manual.

Benefits

• Elimination of a known weak point (safety risk)
• Reduction in service costs - if the original bushes are replaced several times, the rear upright will be damaged and the bushes will no longer sit firmly enough in the wheel carrier. New uprights must be purchased.
• More stable/stiffer rear axle, resulting in more precise articulation and no floating of the bushes.
• Inexpensive, durable and long-lasting solution
• Easy plug & play replacement with the OEM part
• Uniball in motorsport quality (German manufacturer)
• Weight saving per bushing 66g - reduction of the unsprung mass with 4 bushings by 264g

Product details

• Plug & Play
• Robust design and high material quality (Uniballs made in Germany)
• Sleeves made from high-strength aluminium
• Hard-coated black
• Suitable for the bottom and top of the Exige V6 wheel carrier (please order 2 sets if all 4 bushes are to be replaced)

Fits for

• all Exige S3 models (V6)
• 3-Eleven

Scope of delivery

• 1 set (2 pieces) JUBU upgrade Uniball kit for the rear axle (can be used for top or bottom)
• Installation manual as download

Option

• Tool set (facilitates removal and installation)

If you have any questions about the product or the order, please contact us.
